Are there any true radial ring magnets?

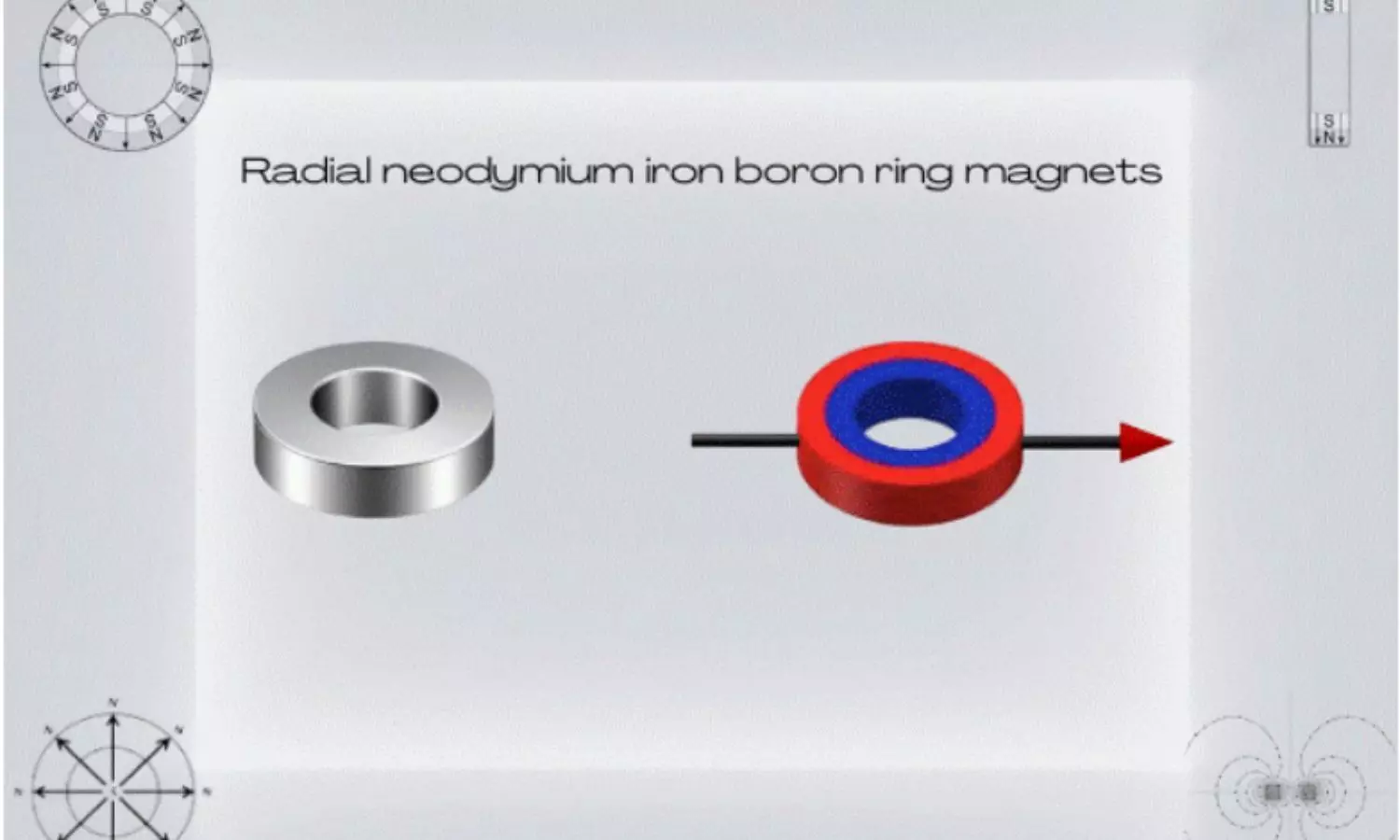

Radial NdFeB ring magnets are a special type of rare-earth magnet whose magnetic field is distributed radially to form a continuous and uniform magnetic field. Unlike traditional axially magnetized ring magnets, the magnetic field lines of radial magnets extend along the radius of the cylinder or sphere. This unique magnetization method makes it excel in applications that require high precision and high efficiency.

What is a radial magnetic field?

A radial magnetic field refers to a magnetic field where the magnetic field lines radiate along the radius of a cylinder or sphere. This magnetic field is not formed by simply placing the north and south poles of the magnets relative to each other, but relies on advanced magnetization processes and dedicated equipment. The uniformity and stability of the radial magnetic field give it significant advantages in rotating systems and dynamic applications, and can reduce performance fluctuations caused by uneven magnetic field distribution.

Differences between radial magnets and traditional magnets

Traditional axially magnetized ring magnets usually have a vertical (along the axis) or horizontal (along the diameter) magnetic field direction, which may cause uneven magnetic field distribution in rotating systems, leading to torque fluctuations or efficiency losses. The magnetic field of radial magnets is distributed radially, providing a smoother magnetic flux, ensuring that the system remains stable when operating at high speed or high precision.

Application scenarios of radial magnets

Radial NdFeB ring magnets are used in many cutting-edge fields due to their high performance and uniform magnetic field distribution.

• n Brushless DC motor (BLDC);
• n Stepper motors;
• n Automotive servo motors;
• n Medical imaging equipment;
• n Precision sensors and encoders;
• n Magnetic couplings;
• n Speakers and voice coil motors;
• n Electronic scales;
• n Magnetic levitation and energy systems;

Why choose radial magnets?

Radial NdFeB ring magnets have the following advantages over traditional magnets:

Uniform magnetic field distribution:

radial magnetization provides smooth magnetic flux, reduces torque fluctuations in rotating systems, and improves efficiency.

High-performance materials:

NdFeB materials have extremely high magnetic energy product (BHmax) and are currently the strongest permanent magnet materials.

Customized design:

Through advanced manufacturing processes, radial magnets can be customized in size, shape and magnetic properties according to application requirements.

Wide application adaptability:

From industrial motors to medical equipment, radial magnets can meet a variety of high-demand scenarios.

Compared with radial ring magnets, radial NdFeB magnets can improve system performance in dynamic systems that require precision and efficiency.

How to choose radial NdFeB ring magnets

When choosing radial magnets, you need to consider the following factors:

Size and shape:

Depending on the specific application scenario, choose the appropriate inner diameter, outer diameter and thickness. Some applications may require non-standard ring designs, such as multi-pole radial magnetization.

Magnetic properties:

NdFeB magnets are divided into different grades. The appropriate grade needs to be selected according to the working environment and performance requirements.

Temperature resistance grade:

Radial magnets may demagnetize in high-temperature environments, so it is necessary to select magnets suitable for the working temperature.

Surface treatment:

According to the use environment, select appropriate surface coatings such as nickel plating, epoxy resin or phosphating to extend the life of the magnet.

Supplier selection

It is recommended to contact professional industrial magnet suppliers who can provide customized solutions and ensure product quality. Global suppliers can generally meet the needs of regions such as North America, Europe and Asia, providing support for engineers, product developers and manufacturers.

Conclusion

Radial NdFeB ring magnets are changing the design and application of motors, sensors and medical devices with their unique magnetic field distribution and high performance. Its uniform magnetic flux, efficient energy conversion and range of application scenarios make it an indispensable component of modern industry. By understanding its definition, manufacturing process and purchase points, engineers and enterprises can better utilize this advanced material to promote technological innovation and industrial upgrading.
